t the recent SIHH, Greubel Forsey took the wind out of everyone else’s sails by unveiling some of their theoretical advances, providing a glimpse of a minuscule deadbeat seconds, barely one millimetre high, spinning swiftly inside the case.
On paper, the advances that would enable watchmaking to take a nanometric approach are spectacular, and we can expect some major upheavals. Just look at the advantages put forward by Greubel Forsey, as a result of their groundbreaking research:
- gains in volume, resulting in up to 90% more space available
- gains in energy, with consumption reduced by up to a factor of 60
- simplified mechanisms with up to three times fewer components required (in the 2016 prototype) renewed creativity and new approaches.
-
-
This drive wheel can
operate using power of
20 nano-Newtons,
which is 100,000 times
less
than the energy required to move an escapement wheel

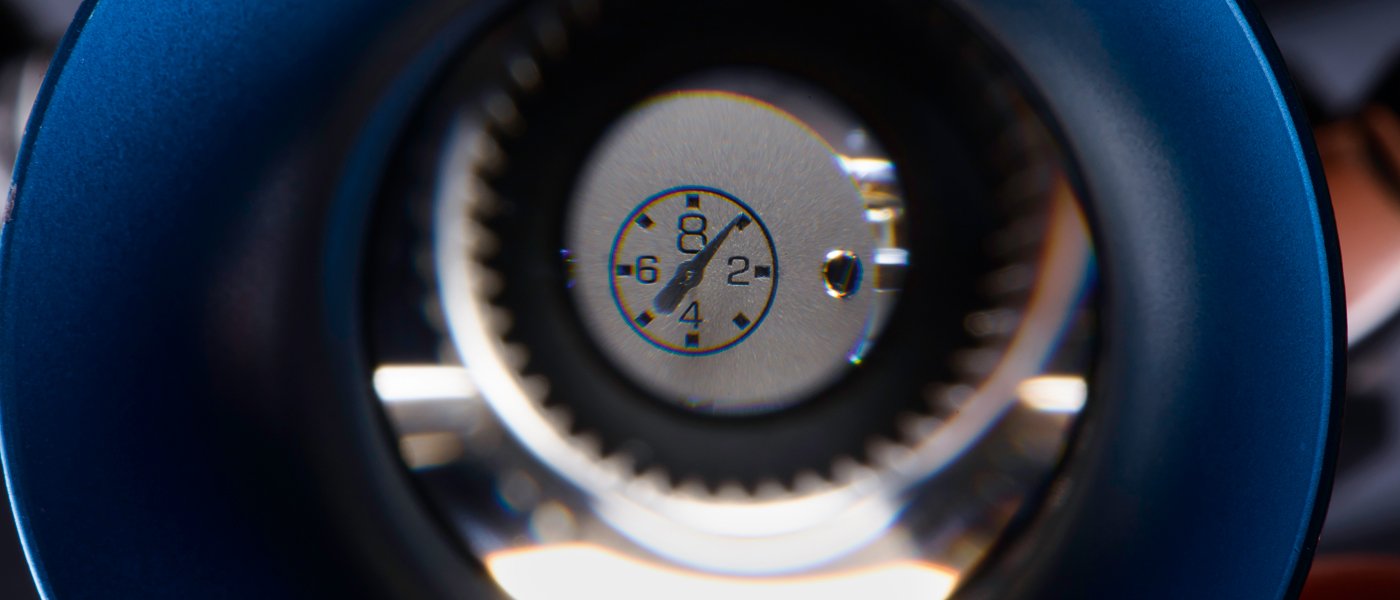

Through the loupe built into the caseband we were able to admire in person the crazy nano-hand, galloping through the eighths-of-a-second, nestled in the heart of the watch. It’s truly mind-boggling.
“Gaining this much energy and this much space opens up perspectives that we could never have dreamed of before,” explains Stephen Forsey. “By economising energy consumption by up to 60 times, we can achieve power reserves that, at this stage in our research, are as high as 180 days, using a regular-sized barrel. What is more, we can use the energy produced by air turbulence inside the movement: ‘draughts’ have become functional. So a drive wheel can operate using power of 20 nano-Newtons, which is 100,000 times less than the energy required to move an escapement wheel.”
Contrary to what one might imagine, working on a nanometric scale (there are one billion nanometres in a metre) is not about using the same components, only smaller. Far from being a microscopic reproduction, moving from a scale of tenths and thousandths to billionths provides an opportunity to completely reconfigure the energetic and spatial distribution of a movement. The space freed up – which is considerable on the scale of a watch movement – provides an opportunity to consider hitherto undreamed-of functions. But which? “A whole new space has opened up,” replies Stephen Forsey. “It forces us to think about what we’re going to do with all this volume. It really is a Terra Incognita. We’ve already added a frequency indicator. But what comes next? The creative and functional opportunities are literally unheard-of.”
-

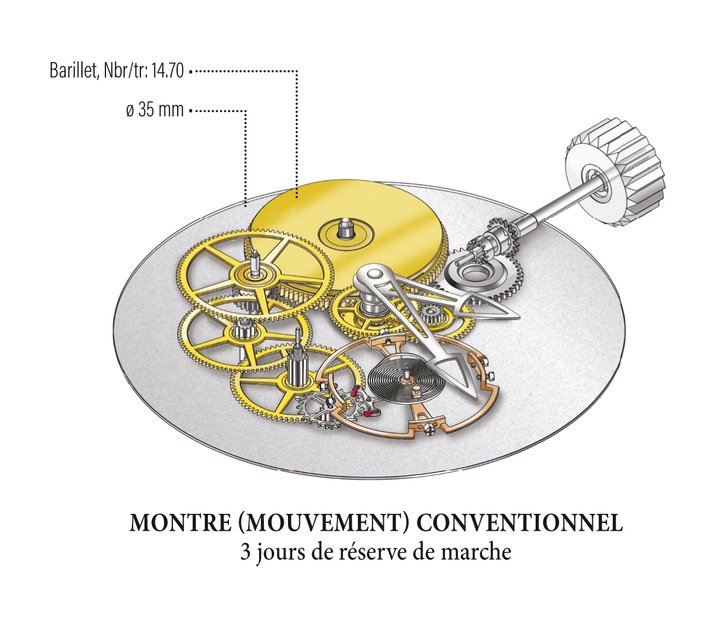

- CONVENTIONAL WATCH MOVEMENT - 3 days power reserve
-
- Barrel, nb/tr: 14.70
- ø 35 mm
-

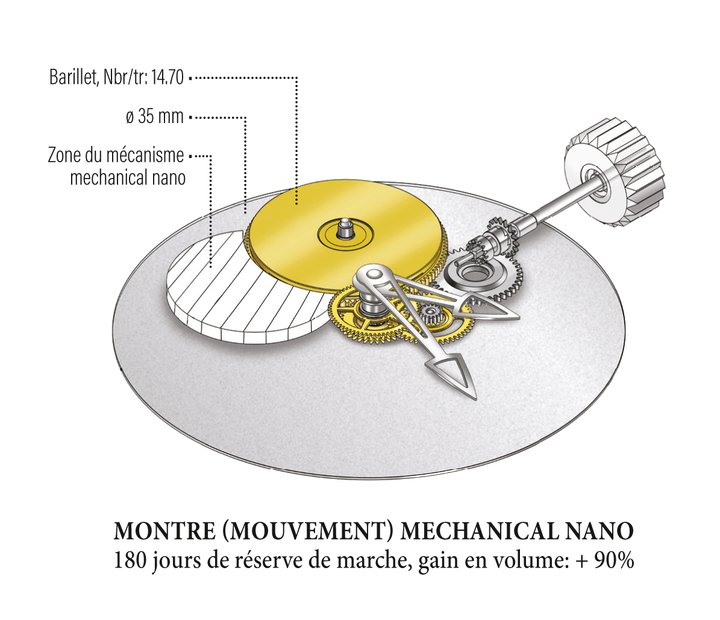

- MECHANICAL NANO WATCH MOVEMENT - 180 days power reserve, volume gain + 90%
-
- Barrel, nb/tr: 14.70
- ø 35 mm
- Mechanical nano
- mecanism zone
Over the course of 2017 and 2018 Greubel Forsey will unveil the results of its research, implemented in two prototypes. We are promised a look at the first Mechanical Nano timepiece “in the near future”.
