rafted in sleek, state-of-the-art grade 5 titanium, powered by a cutting-edge MM01-SK calibre, the MU05-103 represents the ultimate fusion of industrial design and breathtaking 21st century mechanics. A stylistic interpretation of the most accurate designs known to man. A perfect union of aesthetics and technology. A renaissance of the codes of traditional watchmaking. A journey to the heart of an unparalleled masterpiece.

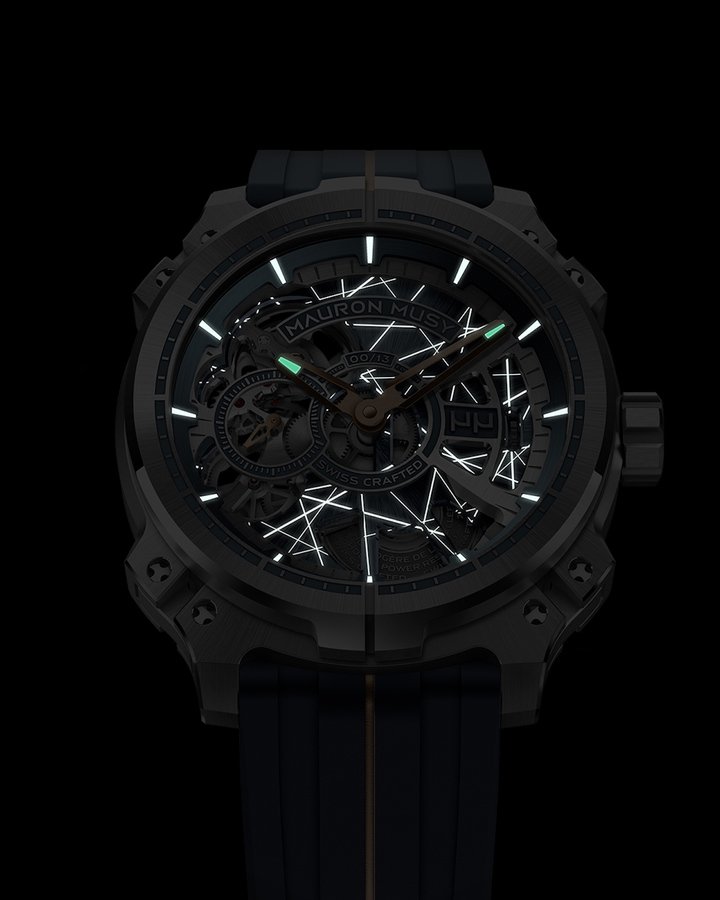

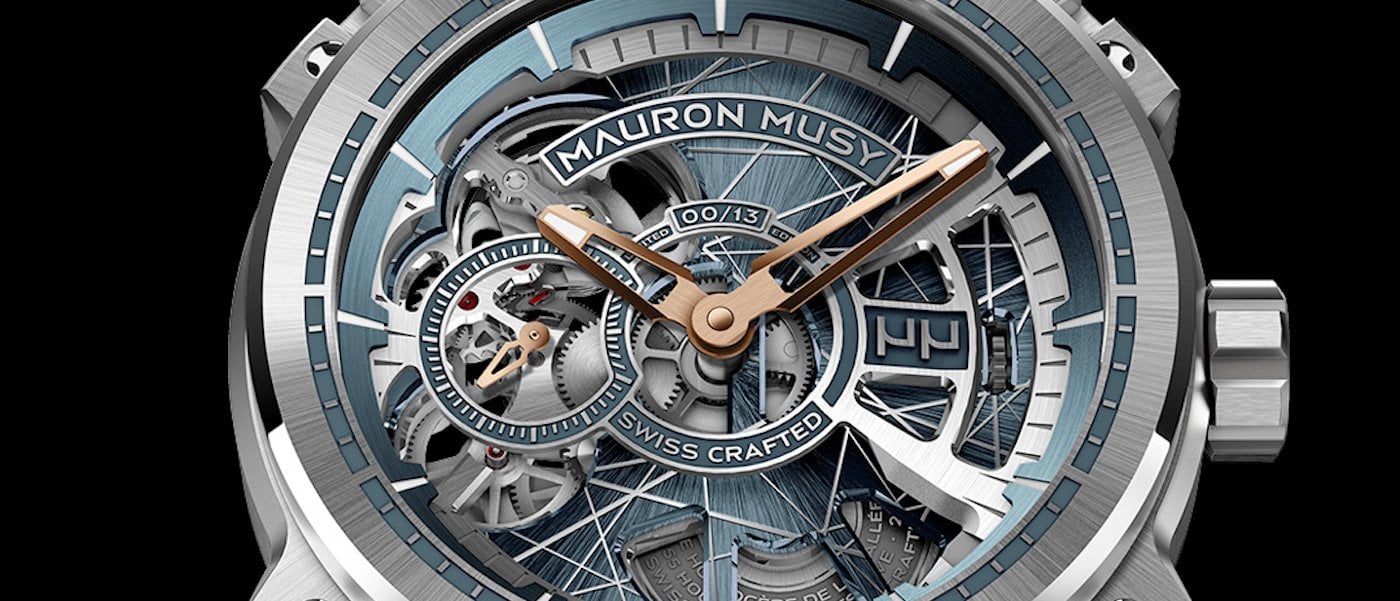

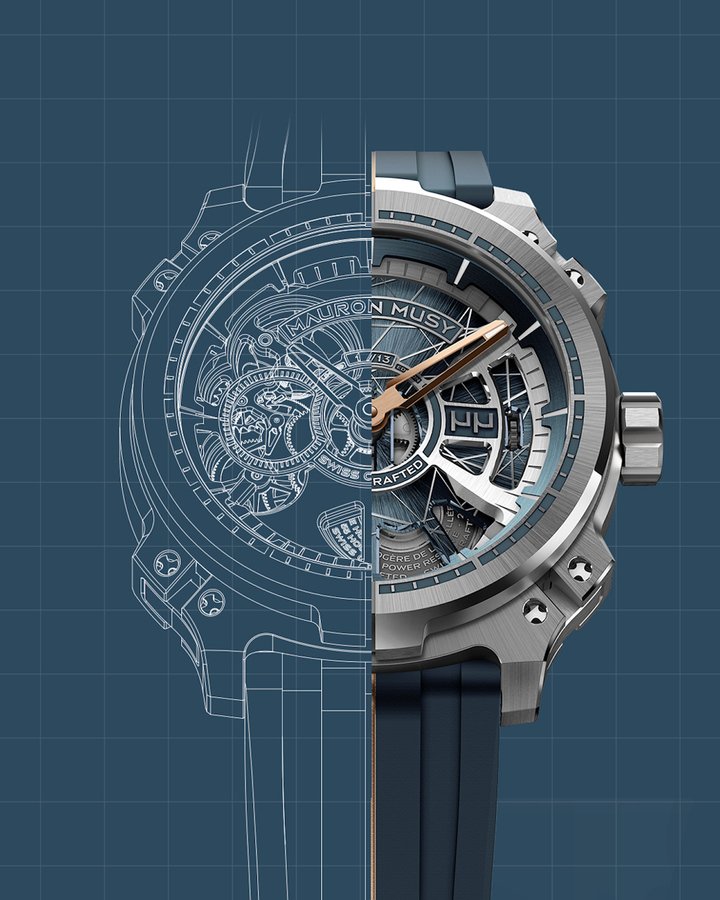

Polished, sophisticated and impossibly creative, the skeletonised MU05-103 springs to life in a vibrant blue achieved by an advanced anodising process and reminiscent of the most sophisticated design drawings. Masterfully revealing the four-fold depths of its inner workings, the titanium dial thus reveals some of the key components of its manufacture calibre. Its heart beating at 4 Hz; its 55-hour power reserve enough to captivate the most intrepid watchmaking adventurer. And then, when night falls, its spirit come to vibrant life as luminescent white lines, cut with the brilliant green of red gold hands, create a living tableau. Thus is all the technical beauty of this 13-piece limited edition divulged, offering a unique visual experience reserved for just a handful of insiders in the know.

Proudly stamped with the Swiss Crafted label, a guarantee of the origin of every meticulously crafted component, the finest details of the MU05-103 once again offer undeniable proof of the unshakable commitment to Swiss authenticity and quality for which Mauron Musy is renowned.

TECHNICAL SPECIFICATIONS

Réf. MU05-103

1. Movement – CALIBRE MM01-SK
• Exclusive self-winding Calibre MM01-SK
• Frequency of 28,800 vph (4 Hz)
• 55-hour power reserve

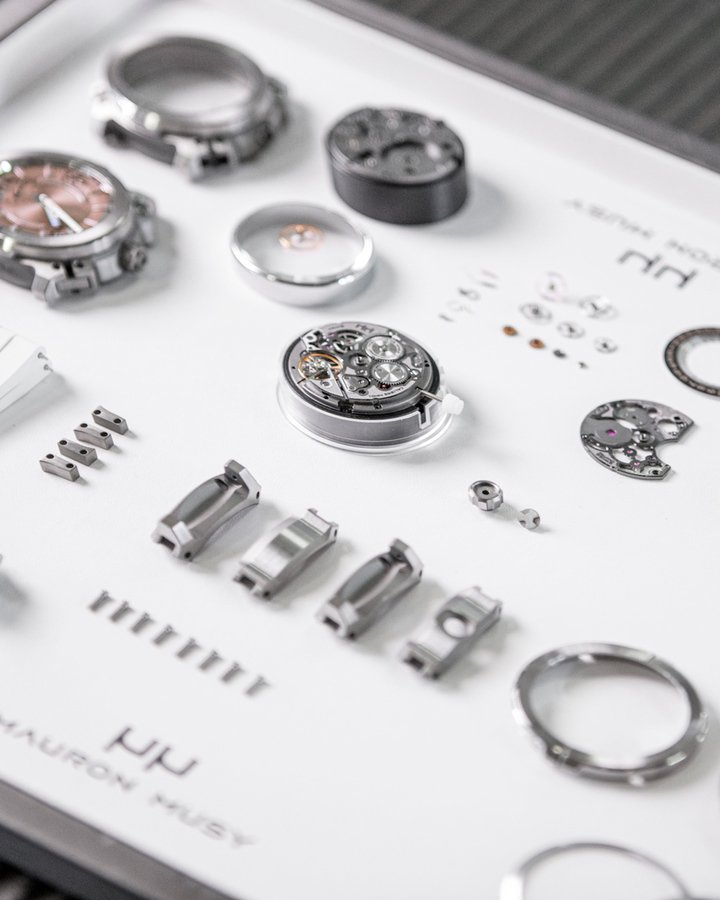

• 167 components

2. Finishing and decoration of the movement
• Snailed and hollowed bridges with microblasted structure, anthracite NAC coating
• Diamond-polished angles
• Microblasted mainplate, anthracite NAC coating
• Sunburst and nickel-plated pallet bridge
• Rhodium-plated and circular satin-brushed gear wheels
• Steel screws with polished heads
• Snailed tungsten oscillating weight with anthracite NAC coating

3. Case
• Titanium grade 5
• 44 mm in diameter x 13 mm thick
• nO-Ring® mechanical water-tightness to 300 m. (30 ATM)
• 36 components
• Glareproofed sapphire crystal and back

4. Dial
• Central displays of the hours and minutes, Small seconds at 9 o’clock
• Luminescent-tipped diamond-polished hands in Rose Gold
• Dial in 6 titanium parts, blue anodised and SLN lines
• Diamond-polished angles
• Stamped with the serial number on 13

5. Strap
• Delivered with two leather and rubber straps enabling tool-free interchangeability
• Folding clasp

6. Specific features
• Limited to 13
• Stamped with the “Swiss Crafted” inscription (meaning 100% made in Switzerland)
• nO-Ring® technology by Five-year guarantee
