he announcement of a new Manufacture Piece (MP) is always eagerly awaited at Hublot. This MP-10 Tourbillon Weight Energy System will be no exception. The piece is immediately arresting. With its rounded angles, sleek design and sapphire crystal of an unparalleled complexity, it houses a movement which is no less sophisticated. A fusion of form and substance. The mechanical and aesthetic power are inseparable – one of the key concepts guiding the MP collections.

And at the point where they intersect, the Manufacture offers a bold reinvention of the classic watchmaking complications. These are avant-garde pieces which are resolutely disruptive in their movement, display and complications. But they are neither concepts nor exercises in style. Like all the other MPs, the MP-10 Tourbillon Weight Energy System is a complete, accomplished and practical watch that will soon adorn the wrists of a select few collectors.

Instinctively, one seeks to characterise the piece in the time-honoured way... Firstly through the figures, which make for impressive reading: 592 components, 5 years of R&D, 2 linear weights, 1 inclined tourbillon, a circular power reserve, for a model to be produced in a limited edition of just 50 pieces.

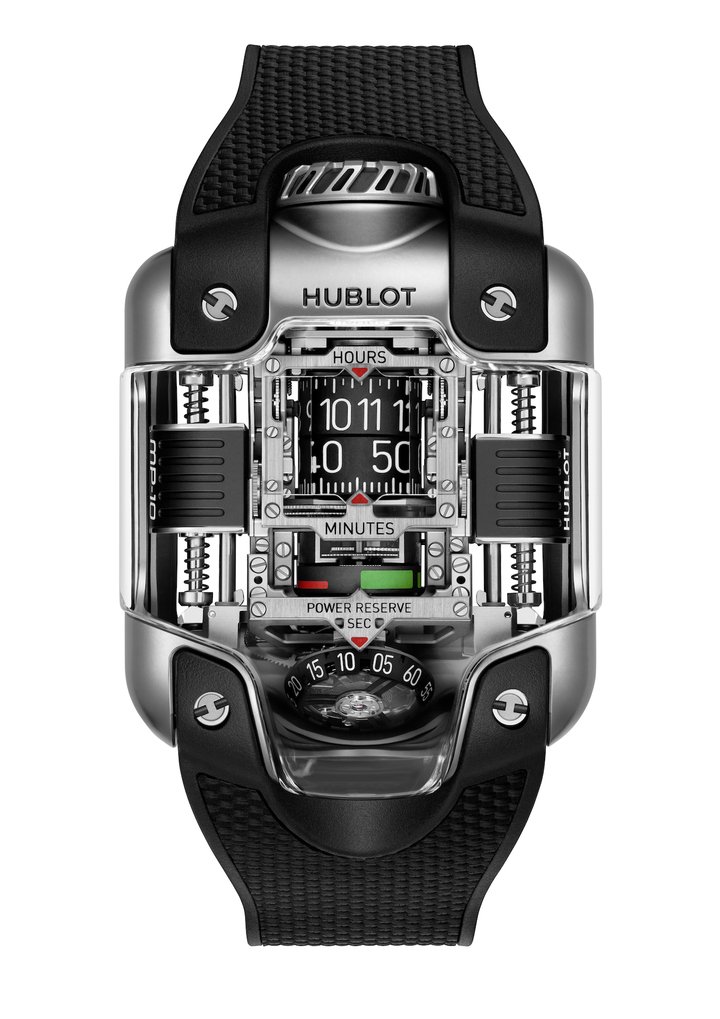

Next, its indications. Here, things get a little more complicated: The MP-10 has no hands. In their place are four constantly rotating displays: the hours and minutes in the upper third of the dial, combined with an invisible magnifying glass; the circular power reserve in the central third, with a very clear green zone and red zone; and the seconds in the lower third which are indicated directly on the tourbillon cage. It is made from monobloc aluminium, suspended and inclined, and a patent application is pending for this unique mechanical configuration.

The piece has no dial: Hublot has fused the calibre with the dial. The movement is the face and soul of the watch. The gaze is drawn directly to the mechanism to read the time. The MP-10 features a highly architectural design and a particularly expressive movement built around volume and depth. Yet, this in no way interferes with reading. Instead, it makes it simpler. The time is read from top to bottom, fluidly and naturally. The power reserve is particularly expressive, with a two-tone disc (red and green) set coaxially to the hours and minutes.

This design eliminates the traditional space constraints, which are usually dictated by a central display in a horizontal plane. The MP-10 can be easily read vertically: hours, minutes, power reserve then seconds. The movement of the eye is fluid and natural. The indications are aligned. They share the same white lacquer typography on black aluminium rollers. For each indication, the current time is read via a red triangular marker.

Its winding system follows the same logic. A traditional movement is formed of a flat dial paired with anoscillating weight on the case-back side. However, this type of construction is incompatible with the MP-10. The piece has no dial or hands, it is not flat, and it is read vertically. So, how is it wound?

The engineers at Hublot retained the weight principle but verticalised it, just like the movement, then duplicated it. On either side of the central architecture sit two blocks of white gold, arranged on a vertical axis along which they are free to move.

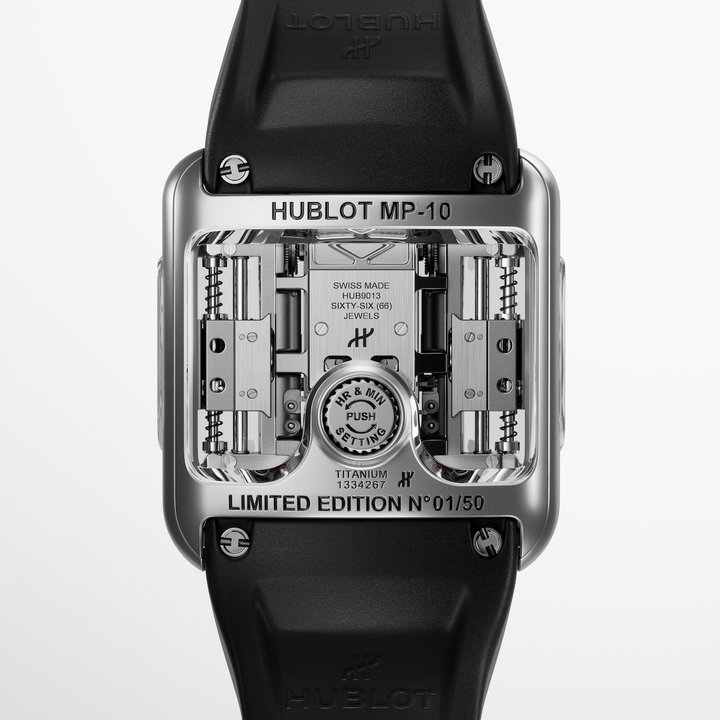

To prevent them from colliding with the banking, Hublot developed a system of shock absorbers. These two vertical weights engage a rack and are able to wind the movement bidirectionally – an exclusive Hublot development for which a patent is also pending, that gives the MP-10 a power reserve of more than 48 hours. The watch is wound manually via the crown at 12 o’clock, while the time is set using a second crown nestled on the case-back side to preserve the fluidity of the design.

The exterior is on par with the movement. While the case construction is simple (two pieces, middle and case-back in shiny micro-blasted titanium), the sapphire crystal atop it is Hublot’s most complex to date and combines inclined planes on three axes. The same applies to the integrated rubber strap – also the most refined ever designed by the Manufacture. Until the next MP.

TECHNICAL SPECIFICATIONS

REFERENCE
910.NX.0001.RX
Limited Edition XX/50

CASE
Shiny microblasted titanium case
H-shaped titanium screws
Transparent sapphire glass with anti-reflective treatment
Size: 54.1 (length) x 41.5 mm (width)
Thickness: 22.4 mm
Water Resistance: 3 ATM / 30 m

CASE BACK
Shiny microblasted titanium

MOVEMENT
HUB9013 manufacture, automatic, skeleton tourbillon
Frequency: 3 Hz (21’600 A/h)
Power reserve: 48 hours
Number of components: 592
Jewels: 66

STRAP AND BUCKLE
Black structured rubber
Titanium deployant buckle
