Question:

When I was travelling by air recently, the glass fell off of my watch. Is this very common and why did it happen?

Jody Abrams, Devon, England

To have the glass fall off of your watch is certainly annoying, although the reason for this fairly uncommon event can be easily explained. Watches that are designed to be water-resistant prevent water from entering the case. That is obvious. But, it also means that air cannot enter the case either. In addition, the air that is already inside the case cannot get out. Therefore, the pressure inside of a watch is the same as the ambient pressure at the factory where it was assembled. And, because the watch is air-tight, this pressure will not change.

If you are in an aeroplane flying at an altitude of 10,000 meters, you still have enough oxygen to breathe because the cabin pressure is maintained artifci-ally using air compressors. If the cabin loses this pressure, oxygen masks will drop from the overhead compartments. However, the air pressure in a plane flying at this altitude is not the same as it is on the ground. It would simply be too expensive to keep the cabin pressurized to such an extent. In general, airlines maintain the pressure inside their aircraft equivalent to that at the top of a 2,000 metre high mountain. As a result, when the aeroplane begins its descent towards the airport, many change when the aeroplane took off since its ascent was more gradual and their ears would have had more time to adjust to the decreasing pressure.

Getting back to watches… Unless they were assembled at 2,000 meters of altitude, water-resistant timepieces maintain the ground pressure. When they are taken in a craft flying at 10,000 metres, their internal pressure will therefore be higher than that of the cabin. From a theoretical point of view, they should have a tendency to explode. Of course, we don’t find watches exploding in flight, although from time to time, we do observe that the glass is ejected from the case thus allowing pressure equalization. If this happens, it is probably due to a weakness in the construction. With modern watch production, however, the glass should not fall out. Normally manufacturers test their watches under conditions of reduced ambient pressure (such as in an aeroplane) as well as under conditions of increased pressure (such as under water).

In your case, the manufacturer of your watch should be responsible for this imperfection and should offer to repair the piece at no charge. In addition, even if there was only one such problem with his products, a conscientious manufacturer should review the manner in which all glasses are mounted in their cases.

Question:

What does the expression “guilloché” mean?

Alfred Lo, Brisbane, Australia

The term ’guilloché’ is a French term that means ’engine-turned’. However these days, the French word is often used in English when dealing with the subject of watchmaking. It is used to describe a technique for engraving a particular type of ornamental motif on an object. Generally, this design consists of wavy and interlacing lines that cross at regular intervals.

This shimmering pattern is created using a machine called a ’tour à guilloché’, or ’rose-engine’ in English. This apparatus is particularly ingenious and can combine several types of movements to obtain varied decorative patterns. We can get a myriad of designs by using different combinations of cams mounted on the axis of the rose-engine. The fixed feeler-spindles push on the various cams, causing the lathe mounted in the cradle to oscillate laterally while turning in front of the stationary engraving tool mounted on the other side of the device. The most classical form of the guilloché motif is the ’barley-corn’ pattern. It is shown in Figures 1a and 1b.

Figure 1a (above left): The first machining stage and the beginning of the second stage for the barley-corn pattern using the guilloché technique. In reality, the machining starts at the edge of the inner central zone to be left blank then moves outward.

Figure 1b (above right): The finished barley-corn pattern using the guilloché method. The inner central zone has been left blank.

This design can be off-centred to leave a space for the addition of a monogram, logo or brand name (see Figure 2). Abraham-Louis Breguet often used dials that had been finely decorated with the barley-corn pattern in his watches.

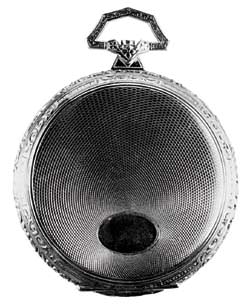

Figure 2 (above left): The back case of a pocket watch that has been decorated with an off-centred oval guilloché technique leaving a blank elliptical area near the base.

Figure 3 (above right): An example of the ’flinqué’ pattern, or a design composed of radiating scallops made by an engine-turning or guilloché technique. In general, however, most dials were decorated with a pattern consisting of radiating scallops or festoons with twelve spokes. This type of guilloché design is called ’flinqué’ in French but is now also used in English. Figure 3 illustrates a good example of this type of engraving. The engine-turning technique can also be used to obtain straight lines as well as to create inter-esting geometric decorations, as shown in Figure 4.

This technique may also be used to approximate classical engraving, for example, to make arrangements of leaves or flowers, complicated geometric designs and even portraits. Figure 5 (below right) shows an excellent example of a highly detailed and intricate guilloché piece of art. This plaque contains elaborate ornamentation and portraits that were made around 1850 by Alcide Nicolet, a craftsman known for the high quality of his very special work.

Figure 4 (above left): The guilloché method can also be used to obtain straight lines and geometrical patterns as seen on the case of this pocket watch. Figure 5: This plaque was created around 1850 by Alcide Nicolet, and shows the many intricate and detailed possibilities for the engine-turning or guilloché technique. Already in 1819, rose-engine machines were operating in La Chaux-de-Fonds. A letter written by Auguste Courvoisier to his brother Frédéric describes a reception given for the Royal Prince of Prussia when he visited the small town: ‘The Royal Prince was presented with a gold medallion. On one side was a portrait of the King that had been made by Henri Banguerel using the same guilloché technique that was used in decorating small boxes. The Prince seemed very satisfied, as much as with his gift as with the battalion and the repast that was prepared in his honour at the town’s offices.’ I might add in the interest of historical detail, that, ironically, the recipient of this letter was none other than the future leader of the rebellion that provoked the separation of the Neuchâtel region from the Prussian empire. The guilloché devices, which were the most highly perfected in their day, could also mass-produce medallions in addition to making objects with very complicated relief designs. The depth of penetration and motion of the engraving tool were guided by a feeler-spindle attached to a hand-crafted model of the motif. In the last century, these techniques were very highly appreciated and often used to decorate timepieces. Today, how-ever, they have lost much of their lustre as the demand for watches with smooth clean lines continues to grow.
